OrthoPolylgon Orthogonal Polygon

Top  Previous  Next

OrthoPolygon1   OrthoPolygon2

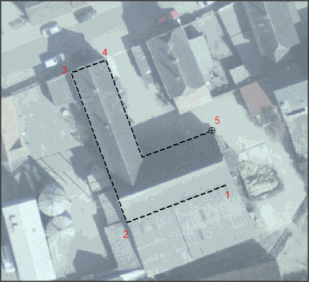

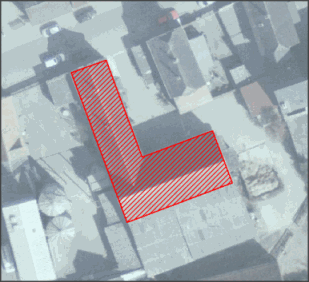

Creates a polygon with a right angle between the first and the last line segment.



To generate automatically right angles (or 45 degree):

Turn off snap mode
Press and hold down the Ctrl key while digitizing (from the second node)



If the conditions Snap mode=off and Ctrl keys=hold are not met, a warning box appears. You can suppress the warning until the next MapCAD start.



Complete digitization with a double-click to the last corner point (NOT back to the starting point). The last line segment is automatically generated with a right angle to the first line segment (by moving the first digitized node).
